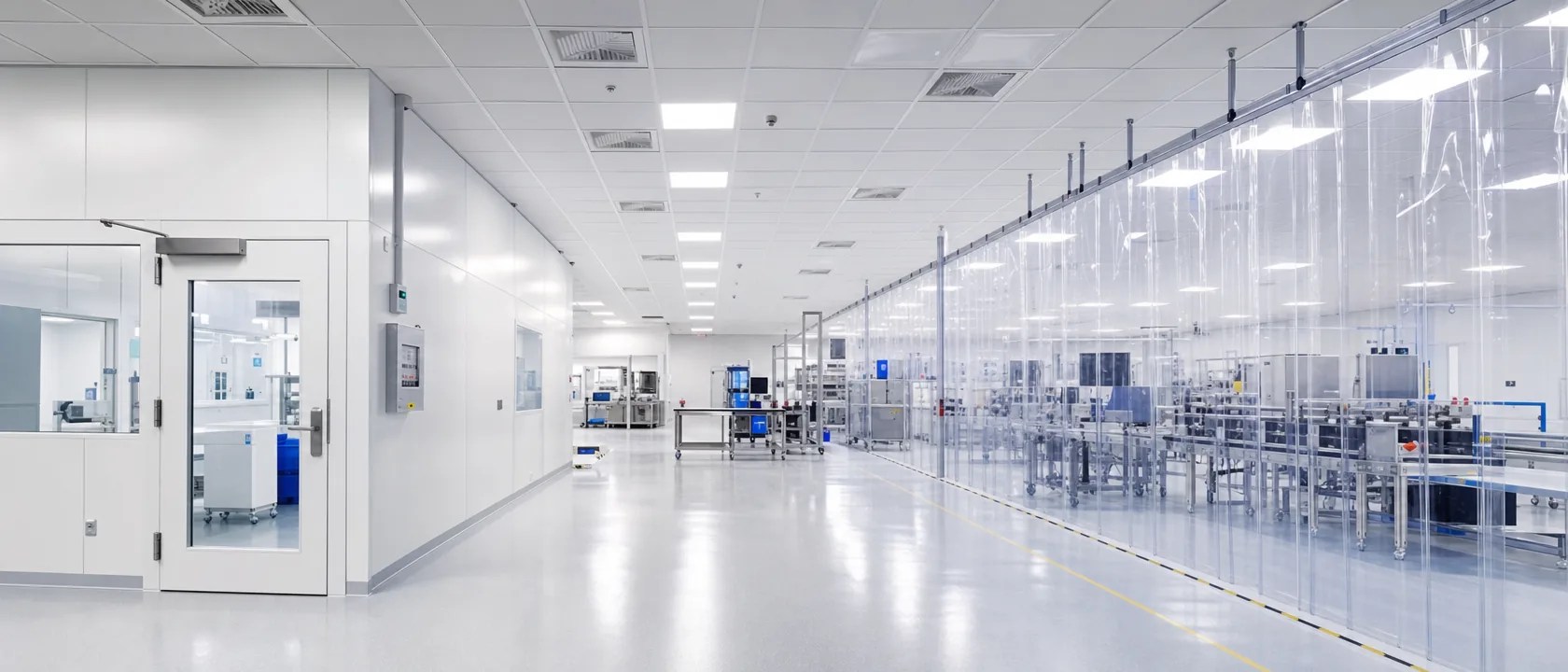

Prefabricated modular cleanroom system inside a production facility

Modular Cleanroom Manufacturer

Custom modular cleanrooms, designed, fabricated and installed.

Get a cleanroom quote
(888) 502-6695

Custom Modular Cleanroom Systems: Engineered and fabricated to ISO 5 through ISO 8 standards with integrated HEPA filtration, fan filter units (FFUs), hardwall and softwall panels, and strict environmental control.

Built in-house: AEL is fully vertically integrated. Control panels, container retrofits, plumbing, electrical, fire suppression and HVAC installation, welding, sheet metal fabrication, and powder coating are all done by our own team. See our in-house capabilities.

Three configurations. One standard.

Hardwall modular cleanroom by AEL

Hardwall

Insulated panels, full pressure control, temperature & humidity management.

  • ISO 5–8
Softwall modular cleanroom by AEL

Softwall

Aluminum frame with vinyl panels. Rapid assembly, cost-effective.

  • ISO 6–8

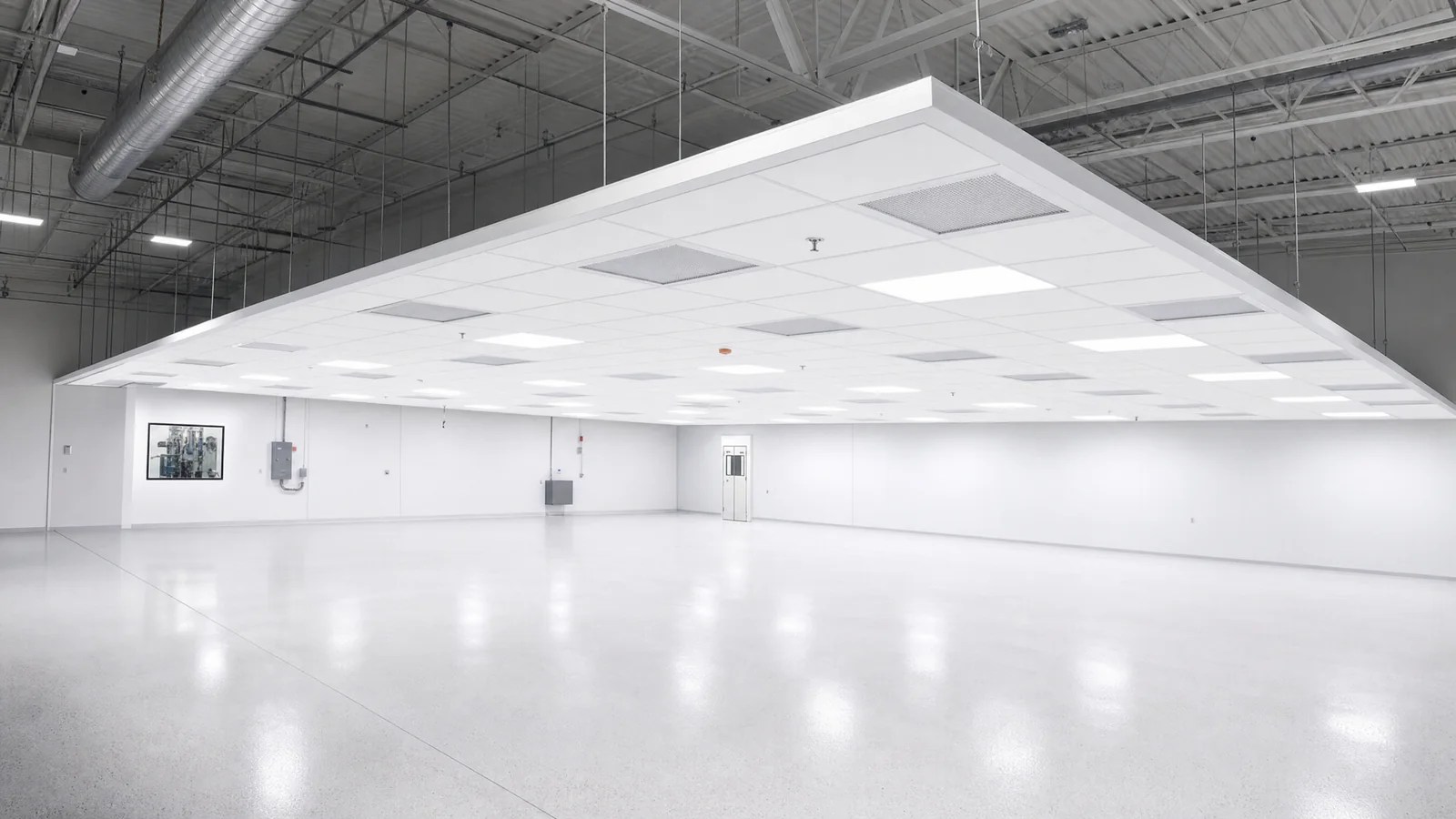

Drop-Ceiling modular cleanroom by AEL

Drop-Ceiling

Suspended HEPA grid. Converts existing space without full walls.

  • ISO 6–8

Know your classification? Get a quote on your configuration

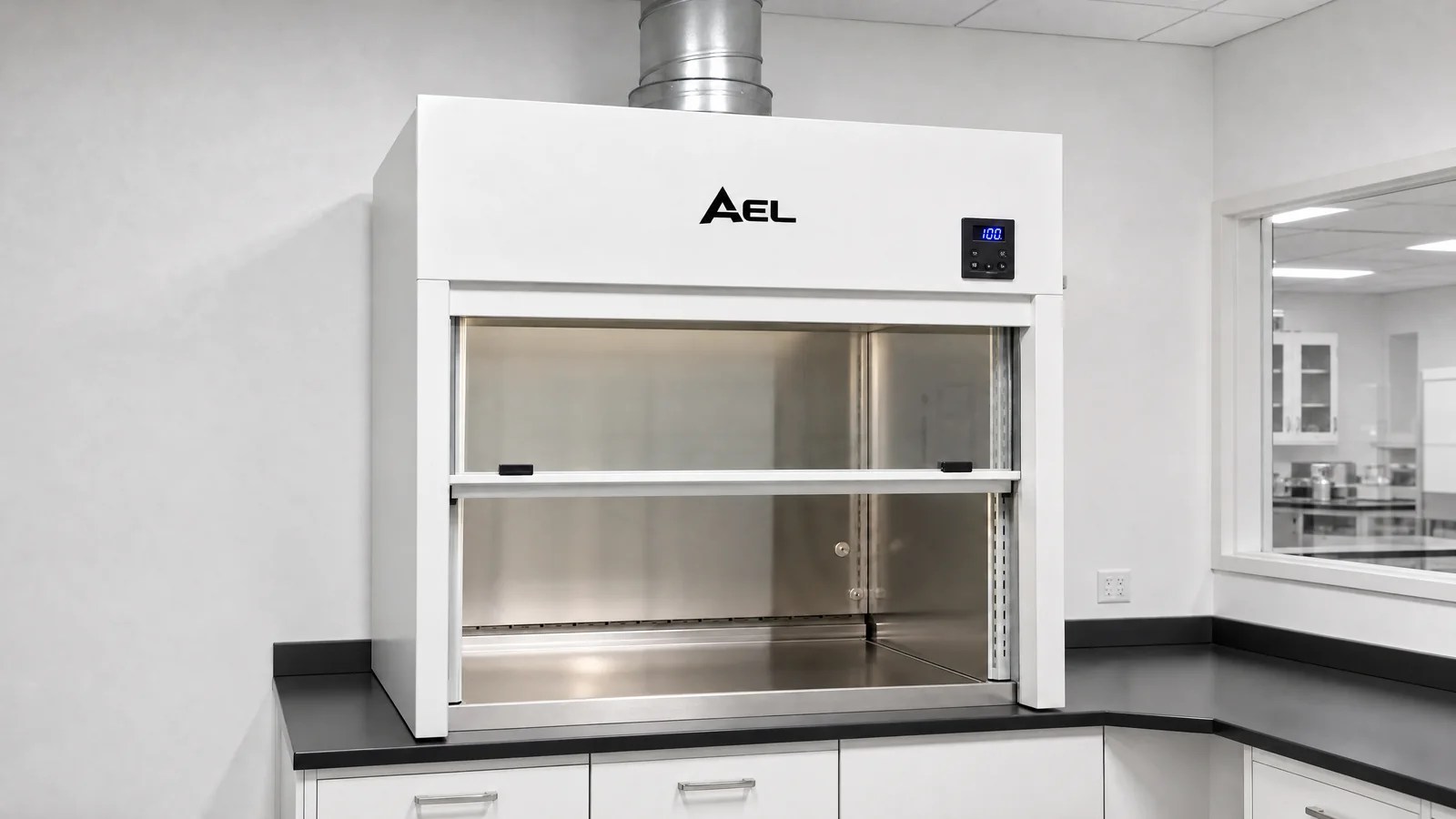

DTC Draft Series

Lab Fume Hoods. Built around your workflow.

AEL DTC Draft Series lab fume hoods pair controlled airflow with configurable work zones for chemical handling, vapor control, and process containment. Choose a ducted system for facility-exhaust integration or a ductless system for flexible, self-contained deployment.

Ducted

Facility exhaust integration

For applications requiring dedicated exhaust routing, variable airflow control, and engineered ductwork integration.

Ductless

Self-contained flexibility

For spaces where external ductwork is impractical and application-specific filtration supports the process.

Explore ducted & ductless

ISO ClassFED 209EParticles/m³Air Changes/hr
ISO 5Class 1003,520240–600
ISO 6Class 1,00035,200150–240
ISO 7Class 10,000352,00060–90
ISO 8Class 100,0003,520,00020–40

  • Pharmaceutical Manufacturing
  • Semiconductor & Microelectronics
  • Medical Device Assembly
  • Biotechnology & Life Sciences
  • Aerospace & Defense
  • Food & Beverage Processing
  • Industrial Processing
  • Compounding Pharmacy (USP 797/800)
  • Research & Development

  • Insulated flush-joint wall panels
  • T-grid or walk-on ceiling systems
  • HEPA (99.97%) & ULPA (99.999%) FFUs
  • Positive pressure air handling
  • Sealed cleanroom doors with interlocks
  • Stainless steel pass-through chambers
  • Air shower & gowning room systems
  • Environmental monitoring (T/RH/ΔP)
  • Epoxy flooring; custom flooring available, including anti-static flooring
  • UL 508A control-panel capability available as specified

  1. Requirements

    Define classification, size, HVAC, and regulatory standards.

  2. Fabrication

    Manufacture panels, framing, and electrical — vertically integrated.

  3. Installation

    Ship and assemble on-site with minimal facility disruption.

  4. Commissioning

    Commission systems and coordinate project-required testing and documentation.

Single-Source

Design, fabrication, electrical, HVAC, installation, and testing support under one contract.

In-House Fabrication

Vertically integrated manufacturer. We build — not resell.

Controls & Fire Protection

UL 508A control capability and fire-protection options coordinated from the design phase.

Relocatable

Modular systems engineered for disassembly and reinstallation.

What is a modular cleanroom and how does it differ from stick-built construction?

A modular cleanroom is a controlled environment assembled from prefabricated wall panels, ceiling systems, and filtration components. Compared with conventional construction, a modular approach can move more work off site and support future reconfiguration; schedule and reuse depend on the selected system and facility conditions.

What ISO classification targets can AEL cleanrooms support?

AEL can design cleanroom systems around ISO 5 through ISO 8 particle-count targets. Final classification depends on the complete room, process, filtration density, airflow, pressurization, commissioning, operating procedures, and documented testing.

How long does cleanroom installation take?

Engineering, fabrication, installation, and commissioning schedules are quoted by project based on room size, system type, site access, utilities, environmental targets, approvals, and testing requirements.

What industries require cleanroom environments?

Pharmaceutical manufacturing, semiconductor fabrication, medical device assembly, biotechnology, aerospace, food processing, industrial processing, compounding pharmacies, defense electronics, and precision optics. Any process sensitive to airborne particulates or microbial contamination benefits from controlled environments.

Can a modular cleanroom be expanded or relocated?

Yes. Modular panel systems are designed for reconfiguration. Walls can be removed and reinstalled to expand floor area or create new zones. Entire cleanrooms can be disassembled and relocated with minimal component loss.

What is included in a turnkey cleanroom from AEL?

Structural framing, insulated wall panels, ceiling grid, HEPA/ULPA fan filter units, LED lighting, sealed doors, pass-through chambers, gowning room provisions, HVAC integration, electrical distribution, environmental monitoring, and commissioning with particle count verification.

Project gallery

AEL modular softwall/hardwall cleanroom enclosure installed on production floor with mobile framing and strip curtains Expand photo (photo 1 of 12) Large-scale modular hardwall cleanroom installed inside manufacturing warehouse with HVAC ductwork Expand photo (photo 2 of 12) ISO 7 cleanroom interior with HEPA ceiling grid and pass-through chambers Expand photo (photo 3 of 12) Completed modular cleanroom interior with flush wall panels and HEPA diffusers Expand photo (photo 4 of 12) Pharmaceutical cleanroom with pressure monitoring and gowned technicians Expand photo (photo 5 of 12) Aerial view of prefabricated modular cleanroom with rooftop HVAC Expand photo (photo 6 of 12) Cleanroom gowning room with stainless steel garment storage and air shower Expand photo (photo 7 of 12) Drop-down ceiling cleanroom with suspended HEPA grid and fan filter units Expand photo (photo 8 of 12) Softwall modular cleanroom with clear vinyl panels and aluminum frame Expand photo (photo 9 of 12) Hardwall cleanroom with observation windows and sealed doors Expand photo (photo 10 of 12) Wide cleanroom production floor with modular partitions and strip curtains Expand photo (photo 11 of 12) Controlled environment with downdraft ventilation and sealed surfaces Expand photo (photo 12 of 12)

Custom Fabrication

Need a custom configuration?

AEL can engineer non-standard dimensions, specialty materials, integrated controls, and project-specific requirements through its Santa Rosa manufacturing operation.

  • Built in-house: fabrication, electrical, controls and suppression by our own team.
  • Approved Stat-X distributor.
  • Factory testing, documented as specified.
