Four Lithium Battery Cabinet Sizes
Fire-Rated Lithium-Ion Battery Storage Cabinets
Fire-rated lithium-ion battery storage cabinets. Storage only — no charging. 90-minute construction. G90 galvanized 18-gauge steel. Built to NFPA 855 & UL 1487 with UL-/ETL-listed components. Made in the USA.
Built to US Code — Not Converted From European
Most lithium battery cabinets sold in America are European cabinets with a new label. You can see it in their specs: metric steel thickness, RAL paint codes, and EN 14470-1 — a European standard written for flammable liquid cabinets, not batteries.
The Sentinel Mini is built in Santa Rosa, California, to the standards your fire marshal and your insurer actually enforce: UL 1487, NFPA 855, IFC Chapter 12, and OSHA 29 CFR 1910. G90 galvanized steel. Gauge, not millimeters. UL- and ETL-listed components throughout. Made in the USA. 2–4 week lead time.

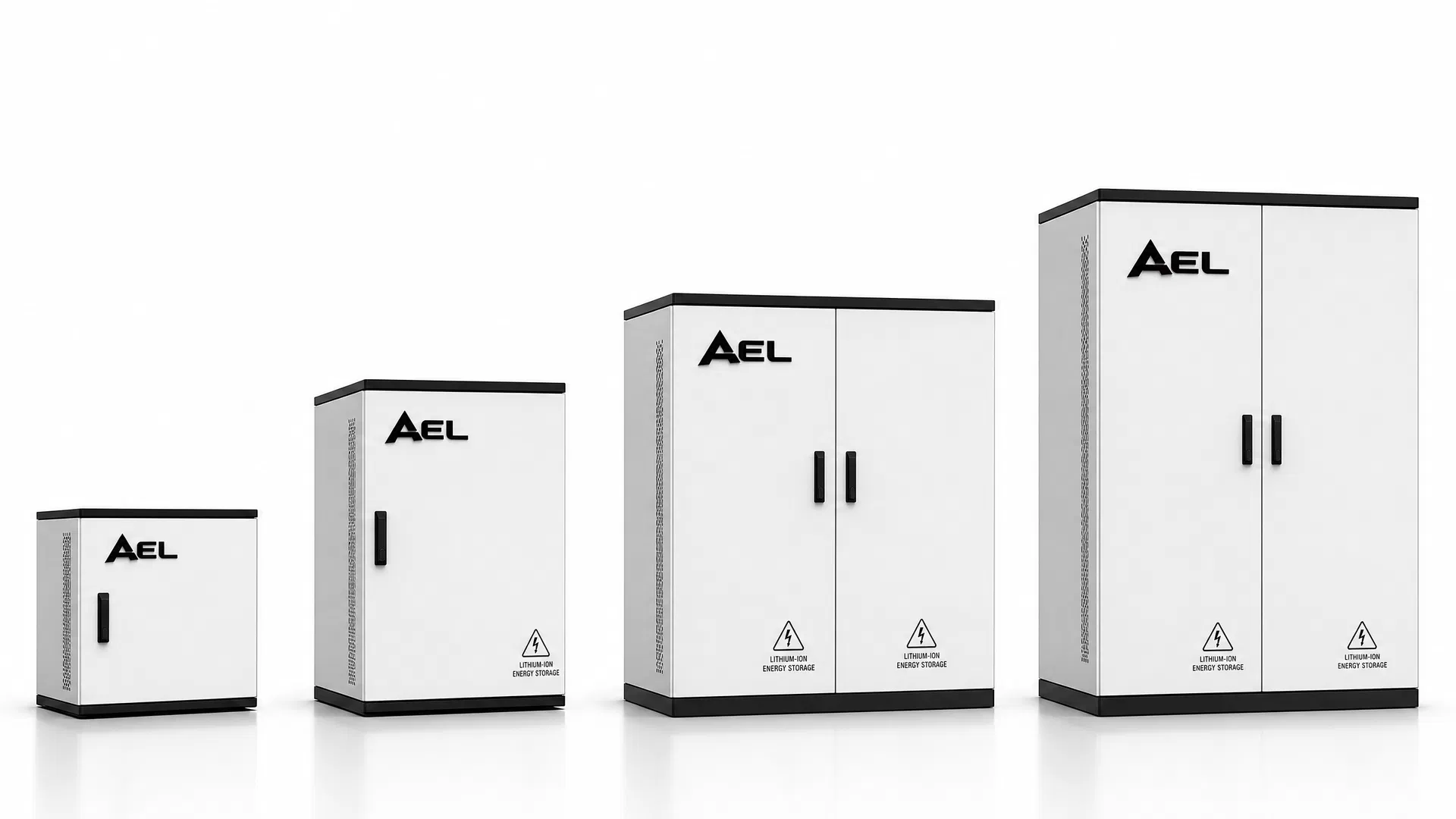

4 Sizes Available
Choose your configuration.

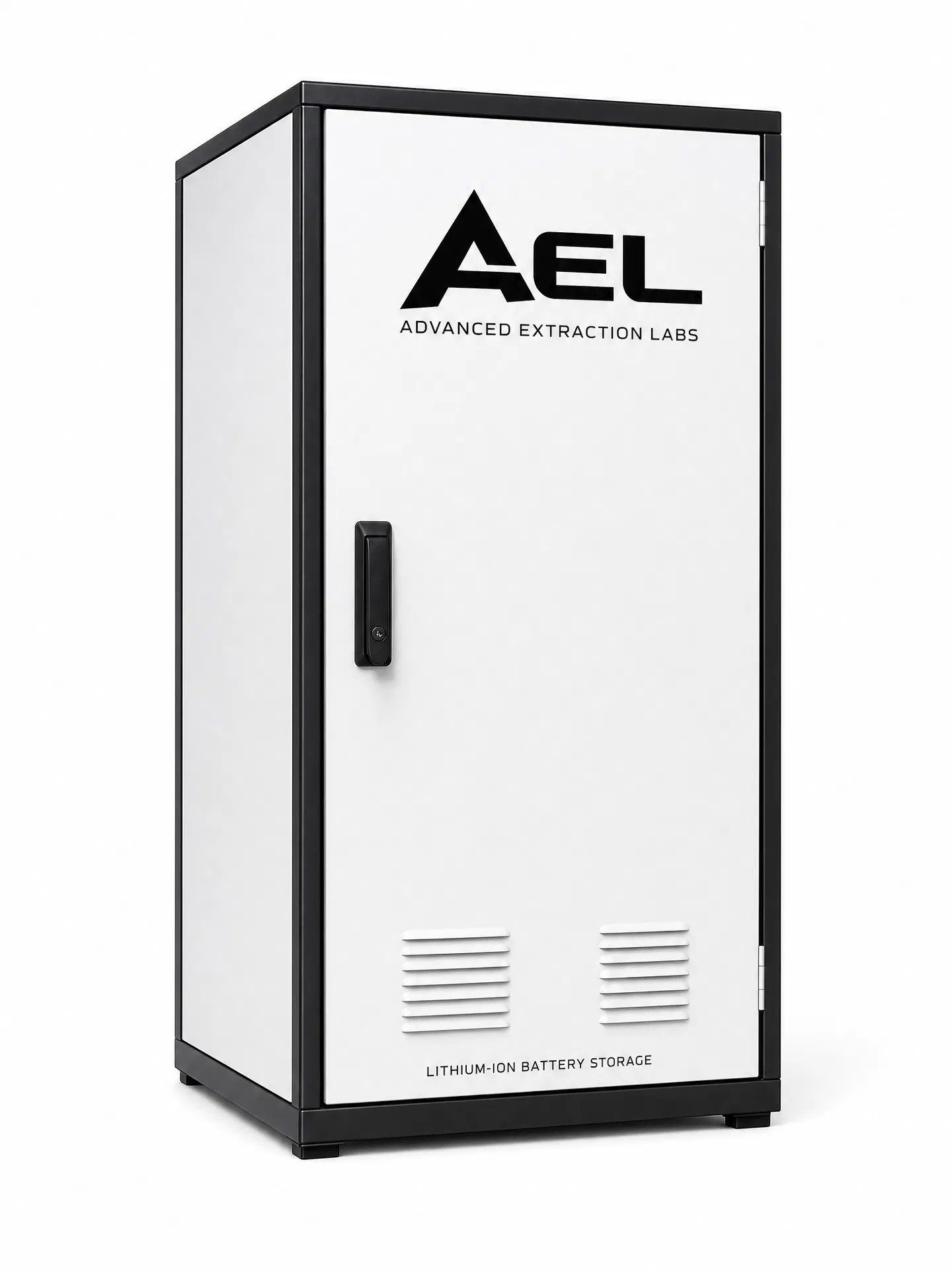

Sentinel Mini 30
Compact Single Door — Countertop
43″ H × 25″ W × 26″ D
90-minute construction
POPULAR
Sentinel Mini 40
Compact Double Door — Countertop
43″ H × 45″ W × 26″ D
90-minute construction
Sentinel Mini 60
Full-Height Single Door
77″ H × 25″ W × 24″ D
90-minute construction
POPULAR
Sentinel Mini 80
Full-Height Double Door
77″ H × 45″ W × 24″ D
90-minute construction
90-Minute Fire-Rated Construction & Fire Suppression
Fully equipped. No add-ons.
90-Minute Construction
Triple-wall steel with thermal insulation. Intumescent door seals expand under heat. Built with UL-/ETL-listed components.
Automatic Fire Suppression
Self-contained canister, thermal-bulb actuated (~174°F). No external power required.
Aspirating Smoke Detection
Integrated detection wired to control panel. Triggers alarms and suppression automatically.
Audible & Visual Alarms
Built-in alarm and strobe. Activates on smoke detection or thermal event.
Fail-Closed Ventilation
Fusible-link louver intake closes on fire. Passive exhaust with fail-closed damper. Optional duct collar.
Secure & Grounded
Key-locking self-closing doors. Grounding point standard. Pallet-jack-friendly base.
Construction
G90 Galvanized Steel Construction – Made in the USA
Body
- Triple-wall fire-rated steel
- G90 galvanized 18-gauge
- Powder-coated panels
- White body / black trim
Doors
- Self-closing mechanism
- Intumescent perimeter seals
- Key-locking, black handles
- Grounding point
Built to code.
- ✓ Built to UL 1487 & NFPA 855
- ✓ UL-/ETL-listed components throughout
- ✓ OSHA 29 CFR 1910 compliant
- ✓ IFC Chapter 12 — Energy Storage
- ✓ 90-minute fire-rated construction
- ✓ G90 galvanized steel (ASTM A653)
- ✓ Manufactured in Santa Rosa, CA
Ready to order?
Get pricing for your Sentinel Mini cabinets. Custom configurations available.
Need container-scale battery storage? See the Sentinel Series →
